PVC PP PE Plastic and Wood Foamed Profile and Plate Extrusion Line / PVC PP Co-extrusion Pannel Machinery
Quick detail:
1. This production line uses a SJSZ80 conical twin screw extruder or a SJSP92 parallel twin-screw extruder.
2. This production line can adopt PLC control system, the performance is stable and reliable.
3. Auxiliary equipment including vacuum sizing table and cooling device, traction device, cutting machine and stacker.
4. The machine can produce PE PP or PVC and Wood profile products. These products are mainly applied for making pellets, packing cases, floors, wall decoration material and other wide applications. The wood powder or plant fiber can be put up to max, 50-75%. This machine can produce the PP PE PVC ABS PS and etc.
Specification of pvc wpc Profile Machine:
1. YF Series PVC profiles extrusion line is mainly used in PVC plastic steel doors and windows profile,window panels, perforated pipe threading and foam profile extrusion products. The production line according to the different requirements of customers and cross-sectional shape of the mold, you can choose the most suitable twin-screw extruder , and equipped with the appropriate vacuum form-ing . Cuttting and other auxiliary traction.
2. PE/PP plastic sheet/board extruding production line is a is mainly used in the products of PE or PP thicker plastic sheet/board
About all parts of the equipment is adopted known brand products
Our company had experiences and technologies made plastic plates (sheets), so it has the easy operation
The products made by us has characteristics of low cost
Clean outside, little error, antiseptic, insulation, and other merits
3. It can be equipped with relative auxiliary equipment, such as vacuum calibration platform, haul-off machine, cutting machine and material stacker. It is mainly used for extruding outdoor decorative WPC profiles, such as gardening landscapes, outdoor landscapes, pallets, etc.
Technical Parameters:
| Items | YF180 | YF240 | YF300 | YF600 | YF900 |
| Max.width of board(mm) | 180 | 240 | 300 | 600 | 900 |
| Extruder Model | SJZ55/110 | SJZ65/132 | SJZ80/156 | SJZ92/188 |
| Mian motor power(KW) | 22 | 37 | 55 | 110 |
| Drawing height(mm) | 150 | 150 | 150 | 150 | 150 |
| Drawing speed(KN) | 20 | 20 | 20 | 30 | 40 |
| Drawing speed(m/s) | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 |
| Auxiliary equipment sum power(kw) | 35 | 35 | 30 | 30 | 40 |
| Cooling water consume(m 3 /h) | 6 | 6 | 6 | 9 | 12 |
| Compression air(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Equipment warranty:
1. 24 hours service
2. We have more than 15 years experiences
3. Our machinery have been sold to all over the world
4. Good after-sales service
Product Tags:
|
|

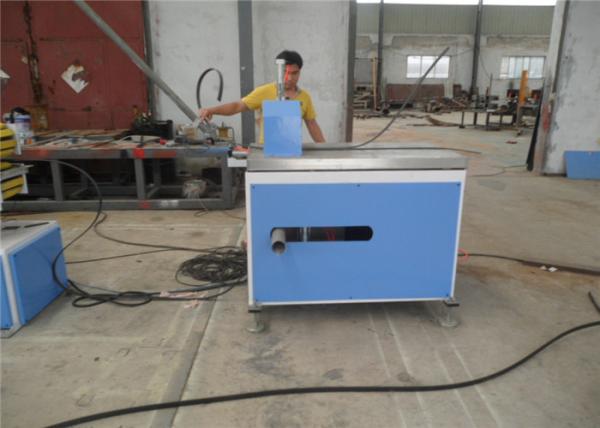

PP PE Plastic and Wood Foamed Profile and Plate Extrusion Line / Co - extrusion Pannel Machinery Images
|
